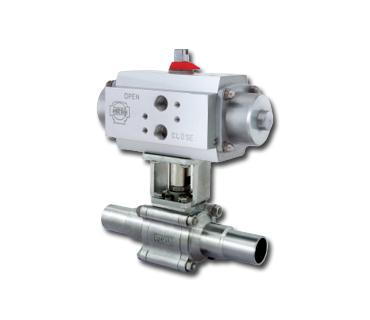

Orbital Weld Ball Valve With Actuator
Designed & Manufactured as per Industry Standards.
End Connection: ASME B 16.25
- Double Gasket Body Sealing ensures positive body joint sealing against pipelines stresses.
- Multi sealed stem prevents atmospheric leakage.
- Antistatic and Blow – out Stem.
The stem assembly consists of Belleville Washer set over the gland and tightened by gland nut assured zero gland leakage, due to live loading of gland.
| Mounting Interface | MOC of the Body | Trim | Seat | Cavity – Filler | Size | Pressure Rating | Construction |
| ISO 5211 | CF8, CF8M, CF3, CF3M (Electropolished) | CF8, CF8M, CF3, CF3M (Mirror polished) | PTFE (Special on request) | PTFE | ½” to 4” | PN 10 | RB, 3 piece |

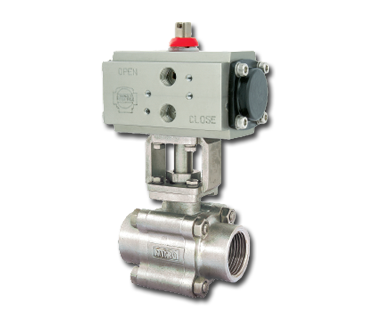

Screwed End Ball Valve with Actuator
Designed & Manufactured as per Industry Standards.
End Connection: ANSI / ASME B 1.20.1:1993 / BS 21.
- Double Gasket Body Sealing ensures positive body joint sealing against pipeline stresses.
- Multi seated stem prevents atmospheric leakage.
- Antistatic and Blow – out Stem.
The stem assembly consists of Belleville Washer set over the gland tightened by gland nut assured zero gland leakage, due to live loading of gland.
| Mounting Interface | MOC of the Body | Trim | Seat | Cavity Filler | Size | Pressure Rating | Construction |
| ISO 5211 | WCB, CF8, CF8M, CF3, CF3M (special on request) | CF8, CF8M, CF3, CF3M (special on request) | PTFE, RPTFE, CFT, GFT(Special on request) | PTFE RPTFE CFT | ¼” to 2” | CWP 1000# to ASME 2500# | FB, 3 piece RB, 3 piece |

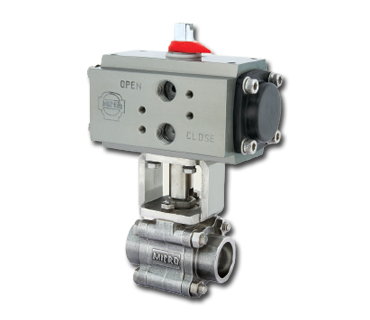

Socket Weld Ball Valve with Actuator
Designed & Manufactured as per Industry Standards.
End Connection: ASME B16.11
- Double Gasket Body Sealing ensures positive body joint sealing against pipelines stresses.
- Multi sealed stem prevents atmospheric leakage.
- Antistatic and Blow – out Stem.
The stem assembly consists of Belleville Washer set over the gland and tightened by gland nut assured zero gland leakage, due to live loading of gland.
| Mounting Interface | MOC of the Body | Trim | Seat | Size | Pressure Rating | Construction |
| ISO 5211 | WCB, CF8, CF8M, CF3, CF3M (special on request) | CF8, CF8M, CF3, CF3M (special on request) | PTFE, RPTFE, CFT, GFT | ¼” to 2” | CWP 1000#, PN 50 | FB, 3 piece RB, 3 piece |

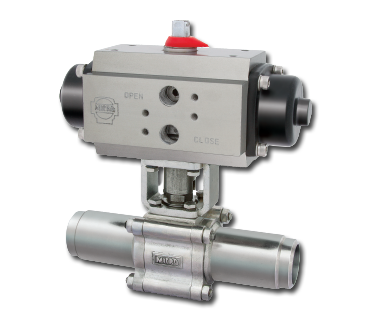

Buttweld Ball Valve with Actuator
Designed & Manufactured as per Industry Standards.
End Connection: ASME B16.25
- Double Gasket Body Sealing ensures positive body joint sealing against pipelines stresses.
- Multi sealed stem prevents atmospheric leakage.
- Antistatic and Blow – out Stem.
The stem assembly consists of Belleville Washer set over the gland and tightened by gland nut assured zero gland leakage, due to live loading of gland.
| Mounting Interface | MOC of the Body | Trim | Seat | Size | Pressure Rating | Construction |
|---|---|---|---|---|---|---|
| ISO 5211 | WCB, CF8, CF8M, CF3, CF3M (special on request) | CF8, CF8M, CF3, CF3M (special on request) | PTFE, RPTFE, CFT, GFT | ½” to 4” | ASME-150# | FB, 3 piece RB, 3 piece |

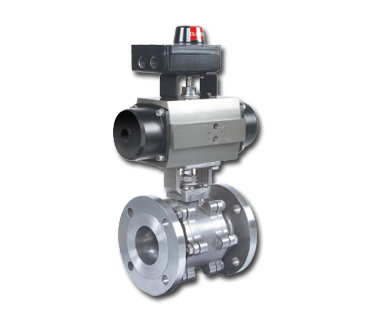

Metal Seated Ball Valve with Actuator
and Position Indicator
- Designed & Manufactured as per Industry Standards
- Pressure Testing API 6D, API 598, BS 6755.
- Fire Test API 6FA, BS 6755 Part II
Metal seated ball valve is well suited for variety of demanding services where high temperature and abrasive solids are present. The design provides freedom for thermal expansion of the ball without jamming even at extreme temperature.
Application : Hot Gases, liquids, Solids and Slurries.
Tightness rates : allowable leakage rate at full ▲P ASME/FCI 70-2 Class V with special lapping.
| Mounting Interface | MOC of the Body | Trim | Seat | Backup Seal | Size | Pressure Rating | Construction |
|---|---|---|---|---|---|---|---|
| ISO 5211 | WCB, CF8, CF8M, CF3, CF3M | SS 316 / SS 304 HastalloyStellitedand ground | SS 304 , SS 316Stellited Inconel 625 | Graphite | ½” to 8” | ASME 150#, ASME 300# | FB, 3 piece / 2 piece |

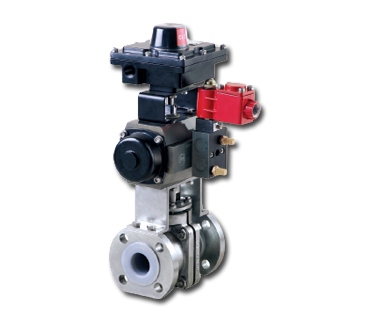

Lined Ball Valve with Actuator and Solenoid Valve
2 Piece Designed ball Valve Body with minimum 3.5 mm thermoplastic lining of PFA, FEP and PVDF, one – piece ball and Stem with minimum lining of 3 mm of PFA, FEP and PVDF universally used for highly corrosive and chemical application.
Full lining thickness in the sealing zone however provides security against permeating media. Live-loaded PTFE seat rings, a permanent tightness is ensured for pressure, temperature and vacuum.
| MOC of the Body | Trim | Lining | Seat | Size | Pressure Rating | Construction |
|---|---|---|---|---|---|---|
| Ductile Iron, WCB, CF8, CF8M, CF3M (Lined) | WCB, CF8, CF8M, CF3M (Lined) | FEP PFA PVDF | PTFE, RPTFE (Special on request) | ½” to 8” | PN 10 (Flange, dimensions as per ASA 150 #) | FB, 3 piece |

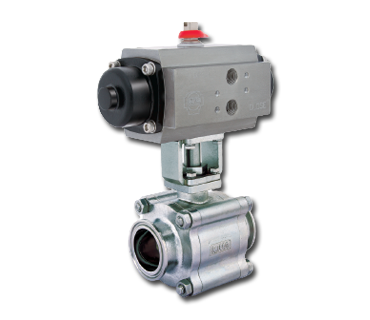

TC End Ball Valve with Actuator
(Valve without Cavity Filler)
- Designed and manufactured as per GMP Norms and ISO 2852.
- Mainly used in Pharmaceuticals, Food and Beverage Industries. Ease to separate from pipe line to flush out periodically.
- Valve surface roughness achieved with electro polish and a series of grit polish.
| Mounting Interface | MOC of the Body | Trim | Seat | Size | Pressure Rating | Construction |
|---|---|---|---|---|---|---|
| ISO 5211 | CF8, CF8M, CF3, CF3M (Electro polished and internal surface Buffed ) | CF8, CF8M, CF3 CF3M (Mirror Polished) | PTFE | ½” to 6” | PN 10 | FB, 3 piece |

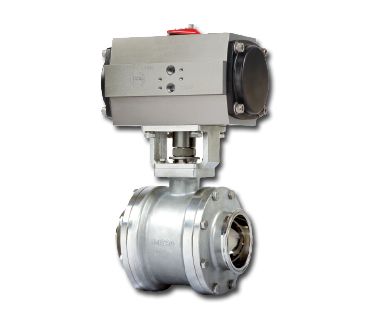

TC End Cavity Filled Ball Valve with Actuator
High Purity Ball Valve: Designed and manufactured as per GMP norms, ISO 2852 and ASME / BPE 1997 / API 6D
Typically used in Bio – Pharma, Pharmaceuticals, Food & Beverage Industry.
A series of grit polishes is applied in a successively finer sequence until the desired finish or surface roughness achieved on the internal surface of the valve and components.
The integrated seat with cavity filler prevents fluids entrapment leading to contamination and cavity fillers ensures clean internals.
| Mounting Interface | MOC of the Body | Trim | Lining | Seat/Cavity Filler | Size | Pressure Rating | Construction |
|---|---|---|---|---|---|---|---|
| ISO 5211 | CF8, CF8M, CF3, CF3M (Electro polished and internal surface Buffed ) | CF8, CF8M, CF3, CF3M (Mirror Finished) | FEP PFA | PTFE | ½” to 6” | PN 10 | FB, 3 piece |

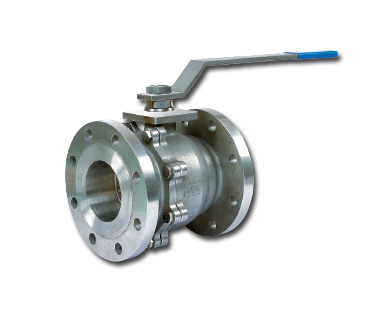

2 Piece Designed Soft Seated Ball Valve
- Designed & Manufactured as per Industry Standards
- Pressure Testing API 6D, API 598, BS 6755.
- Fire Test API 6FA, BS 6755 Part II
Designs :
- Floating Ball Valve
- Trunnion Mounted Ball Valve.
Floating Design :
- Independent Ball and Stem to minimize the effect of the side thrust generated by the pressure acting on the Ball. Two independent Floating Seat Rings assure Bi–directional zero leakage at maximum rated pressure.
Trunnion Mounted Ball Design :
- The ball is fixed and the seat rings are floating free to move along the Valve Axis. At low pressure the Seat Sealing action is achieved by the thrust of the spring’s actions on the seat rings. As the pressure increases the seat rings are pushed against the ball.
| Mounting Interface | MOC of the Body | Trim | Seat | Size | Pressure Rating | Construction |
|---|---|---|---|---|---|---|
| ISO 5211 | WCB, CF8, CF8M, CF3, CF3M (Special on request) | CF8, CF8M, CF3, CF3M (Special on request) | PTFE, RPTFE, CFT, GFT, CO8023 (High Temperature), PCTFE (Cryogenic) | ½” to 16” | ASME 150# , ASME 300#(Higher rating on request ) | FB, 2 piece / 3 piece.RB, 2 piece |

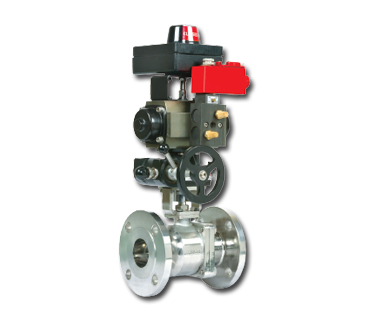

2 Piece Designed Ball Valve
with Complete Automation System
The complete Electro Pneumatic system consist of ball valve, Declutchable Gearbox, Pneumatic Rotary Actuator, Position Indicator and Solenoid Valve.
The valve can be operated by declutchable Gearbox fitted on the valve, even when the Electrical power or Air Pressure fails.
Valve :
- Designed & Manufactured as per Industry Standards
- Pressure Testing API 6D, API 598, BS 6755.
- Fire Test API 6FA, BS 6755 Part II
Type :
- Floating Ball Valve
- Trunnion Mounted Ball Valve.
Actuator :
- Actuators are pneumatically operated quarter turn rotary, dual Rack and Pinion Design manufactured under a robust quality assurance system complying API 6A and ISO 9001:2008
- The valve can be operated by declutchable Gear Box fitted on the valve, even when the Electrical power or Air Pressure fails.
Jacketed Ball Valve with actuator
- Jacketed ball valves are used for high viscous Media like ‘Resin’ or Slurry applications which solidifies at certain temperature range thereby affecting flow ability of media.
- The Jackets assure consistent valve heating or cooling of process media to prevent crystallization or siezing of flow media.
- The jacket covers the body from one flange to the other flange. Hence the valve body is modified by adding over size flanges than standard size of the valve flange.
| Mounting Interface | MOC of the Body | Trim | Seat | Size | Pressure Rating | Construction |
|---|---|---|---|---|---|---|
| ISO 5211 | WCB, CF8, CF8M, CF3M, Hastalloy (Special on request) | CF8, CF8M, CF3, CF3M, Hastalloy (Special on request) | PTFE, CFT, GFT, C08023, Inconel 625 (Special on request) | ½” to 8” | 150#, 300# | FB / 2 way / Single piece Design |
