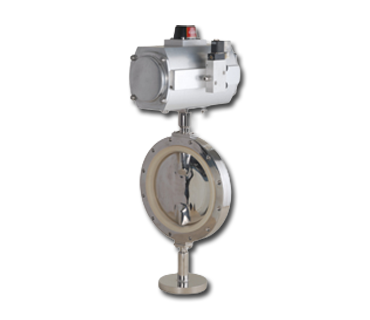

Wafer Type Slim Body Butterfly Valves With Actuator
Slim design is tailor made having provisions for mounting holes on Butterfly-valve Body itself matching mounting dimensions as per requirement.
Valve and actuators are designed and manufactured as per GMP norms.
| Mounting Interface | MOC of the Body | Disc | Seat | Size | Pressure Rating | Construction |
| ISO 5211 | Aluminium (Special on request) | CF8, CF8M, CF3, CF3M (Mirror Polished) | Silicon, EPDM white (Food Grade) | 2”to 16” | PN 6 PN 10 | Wafer Type, Mounting holes on valve Body |

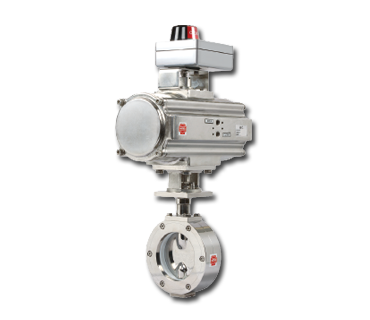

Wafer Type PTFE Seated Butterfly Valves With SS Actuator
Valves and Actuators are designed and manufactured as per GMP Norms.
Complete SS constructed Valves, Actuators and Position Indicators are featured for highly corrosive atmospheric conditions, with ease and quick replaceable seat.
| Mounting Interface | MOC of the Body | Disc | Seat | Back up Seal | Size | Pressure Rating | Construction |
| ISO 5211 | CF8, CF8M, CF3, CF3M (Special on request) | CF8, CF8M, CF3, CF3M (Mirror Polished) | PTFE, Silicon | Silicon, Viton | 2”to 8” | PN 10 | Centric, Universal wafer type |

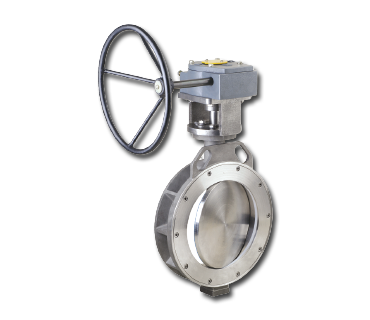

Eccentric Designed Butterfly Valves (Soft Seated)
- Designed & Manufactured as per Industry Standards.
- Pressure testing API 609, API 598-2004, BS 6755.
Off centered disc ensures a progressive smooth and low friction operating, enables economic actuator selection.
Unique sealing system combined with eccentric disc provides an exceptional tight shut – off and vacuum sealing.
This design eases and reduces down time serviceable by just removing the retainer.
| Mounting Interface | MOC of the Body | Trim | Seat | Size | Pressure Rating | Construction |
| ISO 5211 | WCB, CF8, CF8M, CF3, CF3M (Special on request) | CF8, CF8M, CF3, CF3M (Special on request) | PTFE, RPTFE, CFT, GFT, CO8023 | 1½”to 24” | ASME 150#, ASME 300# | Single / Double offset, Universal wafer type |

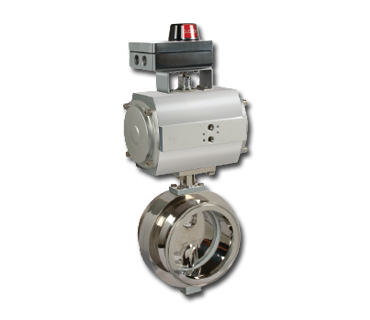

TC End Butterfly Valves With Actuator (Centric)
Designed and manufactured as per GMP Norms for Hygienic applications with PTFE seat. Mainly used in Pharmaceuticals and Food Industry. Ease to separate from pipe line to flush out periodically.
| Mounting Interface | MOC of the Body | Flap | Seat | Size | Pressure Rating | Construction |
| ISO 5211 | CF8, CF8M, CF3, CF3M (Electropolished) | CF8, CF8M, CF3, CF3M Hastalloy, Titanium (Mirror polished) | PTFE, Silicon, White EPDM. (Food Grade) | 1½”to 8” | PN 10 | Centric, Triclover type. |

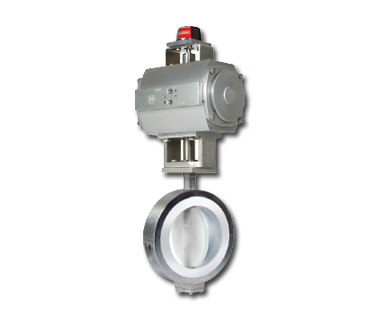

Lined Butterfly Valves With Actuator
- 2 Piece Designed Valve body with easily replaceable PTFE& PFA Sleeve with PFA, FEP and PVDF lined Flap.
- Designed for highly Corrosive Fluids and Acids.
- This design allows easy and quick in-line maintenance.
| Mounting Interface | MOC of the Body | Flap | Backup seal | Size | Pressure Rating | Construction |
| ISO 5211 | Ductile Iron, WCB, CF8, CF8M, CF3 and CF3M with PTFE/ PFA Sleeve | WCB, CF8, CF8M, PFA,FEP,PTFE Lined | Silicon Viton | 1½”to 24” | PN 10 (Higher pressure rating on special request) | Centric, Universal wafer type |

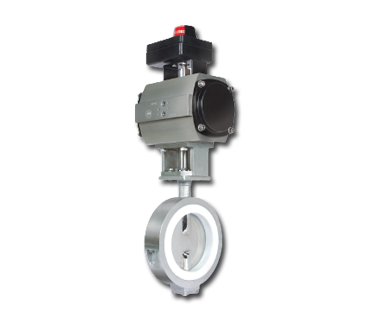

Valve Body Lined With Unlined Disc Butterfly Valves With Actuator
Valve Body with PTFE / PFA Sleeve, Without Lined Flap Butterfly Valve is widely used for corrosive and powder application.
In this design the media comes into contact with PTFE / PFA Sleeve and valve Flap and not with the Valve body. This design allows easy and quick in-line maintenance
| Mounting Interface | MOC of the Body | Flap | Seat | Back up Seal | Size | Pressure Rating | Construction |
| ISO 5211 | Ductile Iron, WCB,CF8, CF8M with PTFE, PFA Sleeve | CF8, CF8M, CF3, CF3M, Hastalloy, Titanium (Special on request) | PTFE, PFA | Silicon, Viton | 1½”to 24” | PN 10 (Higher pressure rating on request) | Centric, Universal wafer type |
