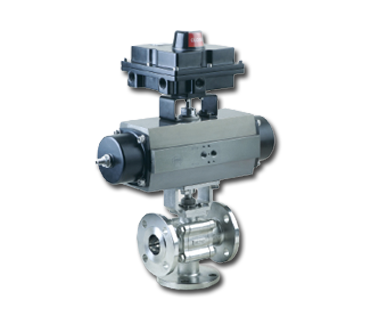

3 Three Way Shut Off Ball Valves With Actuator
The three way ball valve is configured with Shut-off. The three ports are configured as on at bottom and one each on the right and left of the valves. With this, three way shut-off ball valve, the two different Medias can flow separately from either of the two sides of the valve to the bottom side of the valve and can be stopped.
Alternately the three – way shut – off ball valve is features for diverting single media from the bottom port of the valve is either side, with shutting off of the media.
With a single three way ball valve shut – off is also achieved.
| Mounting Interface | MOC of the Body | Trim | Seat / Cavity Filler | Size | Pressure Rating | Construction |
| ISO 5211 | WCB, CF8, CF8M, CF3, CF3M, (special on request) | CF8, CF8M, CF3, CF3M (special on request) | PTFE, RPTFE (Special on request) | ½” to 8” | ASME 150#, ASME 300# (Only Specific sizes) | RB, L2 +90˚- 0˚- -90˚ |

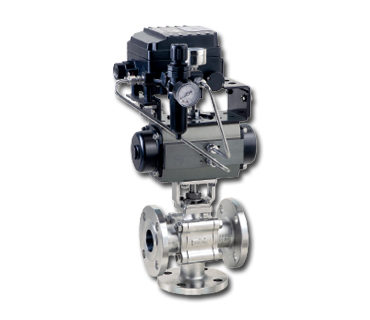

Tri Port Control Ball Valve
The port configuration :
- One inlet and two outlets or two inlets and one outlet.
Features :
- Diverting or Control Diverting
- Control and Mixing
The control diverting enables equal percentage flow characteristics to process with inbuilt corresponding equal percentage by-pass without any development of back pressure or pressure drop. Ideally suited for viscous and slurry flows protecting the pumps.
The control diverting is also features for achieving Coarse and Fine application with by-pass (recirculation) normal open.
The three ports configured open, one at bottom and other and other two at the right and left side of the valve respectively.
| Mounting Interface | MOC of the Body | Trim | Seat / Cavity Filler | Size | Pressure Rating | Construction |
| ISO 5211 | WCB, CF8, CF8M, CF3, CF3M, (special on request) | CF8, CF8M, CF3, CF3M (special on request) | PTFE, RPTFE (Special on request) | ½” to 8” | ASME 150# | RB, Tri port |
3 Way 120˚ Ball Valve with Actuator
The 3 way 120˚ Angle L – Port ball valve is designed for zero cavity, used for diverting heavy or highly viscous or slurry media.
The obtuse 3 way angle path allows a free flow diversion, even material such as powder and dough conveyed through vacuum, ideally suited for vacuum conveyors. The three ports are configured on a horizontal plane for any desired valve orientation.
| Mounting Interface | MOC of the Body | Trim | Seat | Cavity Filler | Size | Pressure Rating | Construction |
| ISO 5211 | WCB, CF8, CF8M, CF3, CF3M, (special on request) | CF8, CF8M, CF3, CF3M (special on request) | PTFE, CFT, RPTFE (Special on request) | PTFE, CFT, RPTFE | ½” to 4” | ASME 150# | FB, 0˚ to 120˚ |

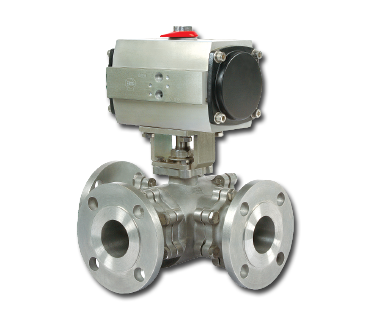

3 Way T – Port Pigging Ball Valve with Actuator
The 3 way ball valve is featured with a through T – Port for pigging application.
The steady state non – restricted reliable transfer of pig is achieved by the featured zero cavity T – port internal through path.
The 3 ports are configured on a horizontal plane for transfer of pig through a straight path and the angular transfer of media
| Mounting Interface | MOC of the Body | Trim | Seat | Cavity Filler | End Connections | Size | Pressure Rating | Construction |
| ISO 5211 | WCB, CF8, CF8M, CF3, CF3M, (special on request) | CF8, CF8M, CF3, CF3M (special on request) | PTFE, RPTFE, CFT (Special on request) | PTFE, CFT, Metal | Flanged to ASME B16.5 (Special on request) | ½” to 8” | ASME 150# | FB, T – port Schedule 40 |
